ESP32-S2 Datasheet | 技术规格书

Postby rudi ;-) » Fri Aug 23, 2019 12:49 pm

Hi Folks

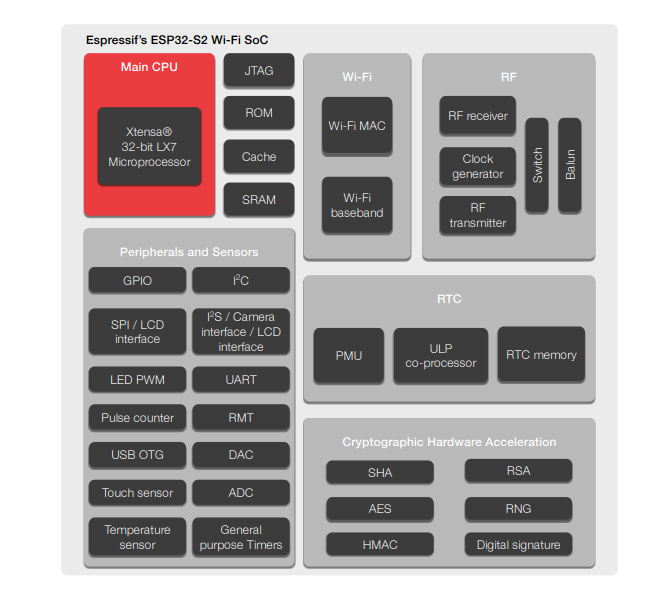

This document provides the specifications of chip ESP32-S2.
ESP32-S2 Datasheet is out and online.

Espressif provides technical documentation also email notifications to keep customers updated on changes to technical documentation.
Please subscribe at Espressif documents

best wishes
rudi ;-)

also attached for history

Prerelease version V0.4 2019 NOV 15
0.4_esp32-s2_datasheet_en.pdf
(732 KiB) Downloaded 1097 times
History
V 0.4
Updated Section 2.6.2: Ultra-Low-Power Co-processor;
Updated Section 2.7: Timers and Watchdogs;
Updated Table 15: GPIO Matrix;
Added documentation feedback hyperlink;
Fixed formatting issues;
Other small changes.



Prerelease version V0.3 2019.08.23
esp32-s2_datasheet_en.pdf
(734.04 KiB) Downloaded 1430 times
Last edited by rudi ;-) on Fri Jun 05, 2020 11:24 pm, edited 2 times in total.
-------------------------------------
love it, change it or leave it.
-------------------------------------
問候飛出去的朋友遍全球魯迪

ESP_Lvxinyue
Posts: 51
Joined: Fri Dec 25, 2015 6:13 am

Re: ESP32-S2 Datasheet is out

Postby ESP_Lvxinyue » Fri Nov 15, 2019 7:41 am


User avatar
rudi ;-)
Posts: 1698
Joined: Fri Nov 13, 2015 3:25 pm

ESP32-S2 Datasheet | 技术规格书

Postby rudi ;-) » Fri Jun 05, 2020 11:23 pm

Hi Folks

updated, now V1.0


ESP32-S2 Datasheet
This document provides the specifications of chip ESP32-S2.

V1.0 2020.06.05
• Modified the second note under Table 3
• Modified the frequency of internal RC oscillator in Section 2.2.2 from 150 kHz to 90 kHz
• Renamed RISCV to RISC-V and ULP-RISCV to ULP-RISC-V in Section 2.6.2
• Modified a few figures in Table 12
• Added a note about VOH and VOL under Table 9
• Added Table 13
• Other small changes


ESP32-S2 技术规格书
本文档为用户提供 ESP32-S2 芯片的技术规格。

V1.0 2020年06月05日
• 修改表 3 下方第二条说明
• 将章节 2.2.2 中内置 RC 振荡器的频率由 150 kHz 改为 90 kHz
• 将章节 2.6.2 中 RISCV 改为 RISC-V,ULP-RISCV 改为 ULP-RISC-V
• 修改表 12 中几个功耗典型值
• 在表 9 下方增加关于 VOH 和 VOL 的说明
• 增加表 13
• 其他微小改动


also for History here attached EN and CN Version


esp32-s2_datasheet_en.pdf
ESP32-S2 Datasheet
V1.0 2020.06.05
(735.83 KiB) Downloaded 886 times



esp32-s2_datasheet_cn.pdf
ESP32-S2 技术规格书
V1.0 2020年06月05日
(1.06 MiB) Downloaded 871 times

best wishes
rudi ;-)
-------------------------------------
love it, change it or leave it.
-------------------------------------
問候飛出去的朋友遍全球魯迪

User avatar
rudi ;-)
Posts: 1698
Joined: Fri Nov 13, 2015 3:25 pm

Re: ESP32-S2 Datasheet | 技术规格书

Postby rudi ;-) » Fri Sep 25, 2020 2:49 pm

Hi Folks,

updates available, now V1.1 ( 2020.09.07 )

ESP32-S2 Datasheet V1.1 2020.09.07
•Added information about ESP32-S2FH2 ESP32-S2FH4;
•Added Chapter1 Family Member Comparison.


ESP32-S2 技术规格书 V1.1 2020年09月07日
•增加芯片型号ESP32-S2FH2、ESP32-S2FH4;
•增加章节 1:产品型号对比。

also for History here attached EN and CN Version
esp32-s2_datasheet_en.pdf
ESP32-S2 Datasheet
V1.1 2020.09.07
(778.07 KiB) Downloaded 668 times


esp32-s2_datasheet_cn.pdf
ESP32-S2 技术规格书
V1.1 2020年09月07日
(1.11 MiB) Downloaded 719 times

Document Updates
Please always refer to the latest version on https://www.espressif.com/en/support/download/documents.

Documentation Change Notification
Espressif provides email notifications to keep customers updated on changes to technical documentation.
Please subscribe at www.espressif.com/en/subscribe


文档版本
请至乐鑫官网 https://www.espressif.com/zh-hans/suppo ... /documents 下载最新版本文档。


文档变更通知
用户可以通过乐鑫官网订阅页面 www.espressif.com/zh-hans/subscribe 订阅技术文档变更的电子邮件通
知。


best wishes
rudi ;-)
-------------------------------------
love it, change it or leave it.
-------------------------------------
問候飛出去的朋友遍全球魯迪
