[Prerelease] ESP32­S3­WROOM­1 & ESP32­S3­WROOM­1U Datasheet

User avatar
rudi ;-)
Posts: 1698
Joined: Fri Nov 13, 2015 3:25 pm

[Prerelease] ESP32­S3­WROOM­1 & ESP32­S3­WROOM­1U Datasheet

Postby rudi ;-) » Thu Aug 26, 2021 9:06 pm

Hi Folks

ESP32­S3­WROOM­1 & ESP32­S3­WROOM­1U Datasheet Pre-release v0.5.1.
It is the preliminary for chip revision 0

[English Version for the First Step ]
ESP32-S3-WROOM-1_1U_v0.5.1_Preliminary.pdf
ESP32­S3­WROOM­1 | ESP32­S3­WROOM­1U Datasheet Pre-release v0.5.1
(777.13 KiB) Downloaded 1034 times
i will update the post here if the Datasheet | 技术规格书 / News is online at espressif too :mrgreen:

best wishes
rudi ;-)


btw:

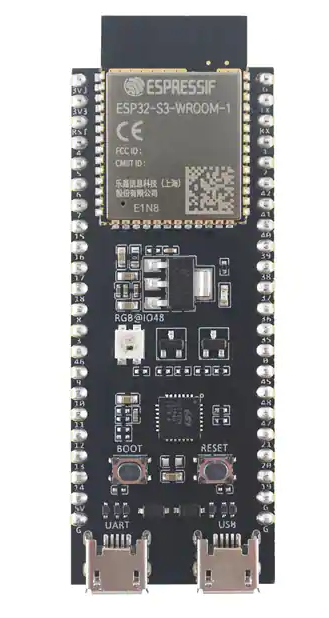

ESP32-S3-WROOM example on the new ESP32-S3-DEVKITC-1-N8 | ESP32-S3-DEVKITC-1-N8R2
Attachments
ESP32-S3-DEVKITC-1-N8[R2]
Last edited by rudi ;-) on Fri Oct 29, 2021 2:54 pm, edited 1 time in total.
-------------------------------------
love it, change it or leave it.
-------------------------------------
問候飛出去的朋友遍全球魯迪

dmaxben
Posts: 108
Joined: Thu Nov 16, 2017 6:04 pm

Re: [Prerelease] ESP32­S3­WROOM­1 & ESP32­S3­WROOM­1U Datasheet

Postby dmaxben » Wed Sep 01, 2021 1:59 pm

Will there be an ESP32-S3 mini module?

User avatar
rudi ;-)
Posts: 1698
Joined: Fri Nov 13, 2015 3:25 pm

Re: [Prerelease] ESP32­S3­WROOM­1 & ESP32­S3­WROOM­1U Datasheet

Postby rudi ;-) » Wed Sep 01, 2021 2:50 pm

dmaxben wrote:
Wed Sep 01, 2021 1:59 pm
Will there be an ESP32-S3 mini module?
in any case -
modules from the ESP32, ESP32-S3, and ESP32-C3 series will also be included in Espressif's MINI series.

FYI:
ESP32-S3-USB-OTG with ESP32-S3-MINI is allready available.

i also use Mini Serie's at the Stickley.

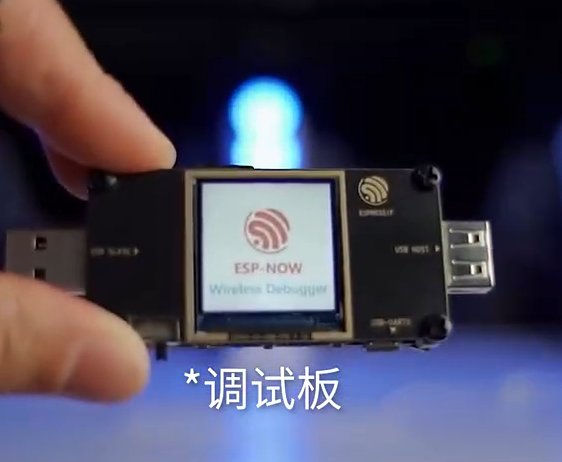

Wireless Debug
ESP-NOW
ESP32-S3-USB-OTG

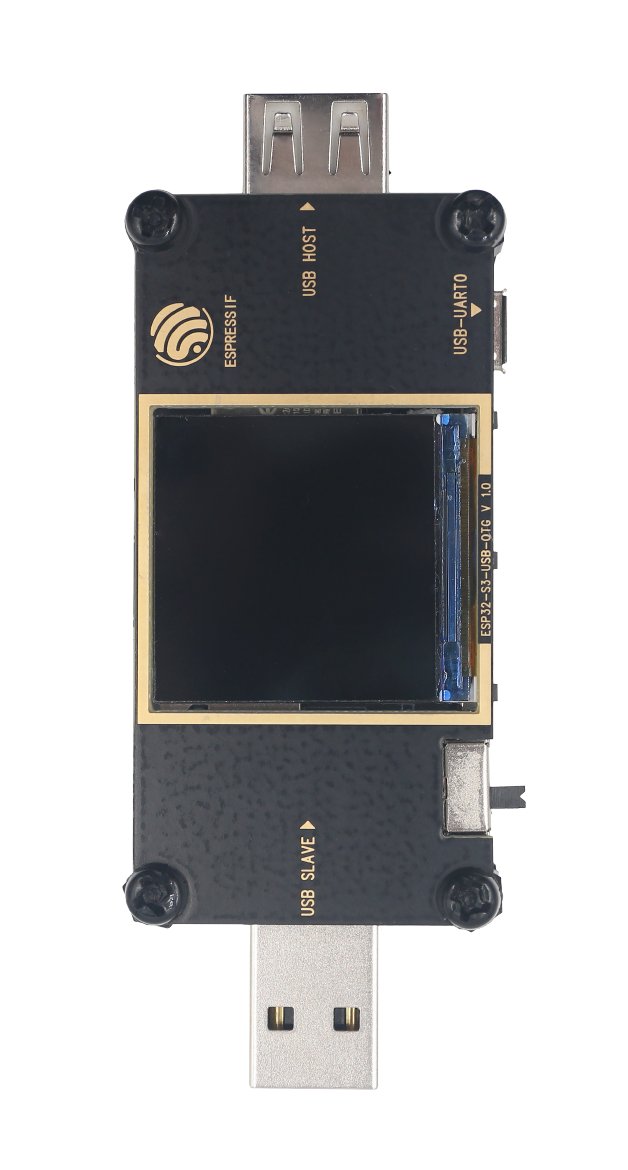

TOP
ESP32-S3-USB-OTG

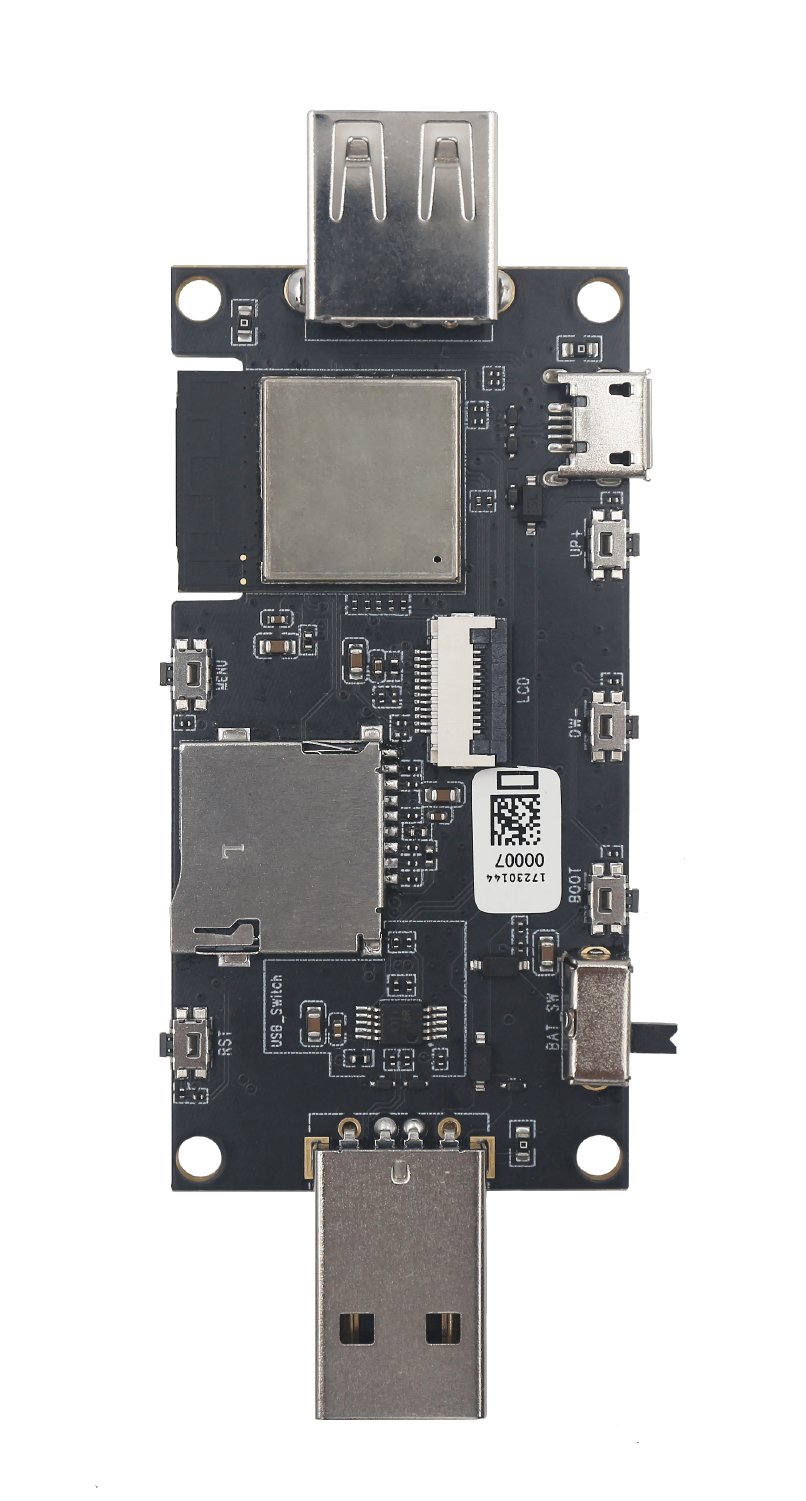

BACK
-------------------------------------
love it, change it or leave it.
-------------------------------------
問候飛出去的朋友遍全球魯迪

mlinaje
Posts: 3
Joined: Wed Apr 18, 2018 12:05 pm

Re: [Prerelease] ESP32­S3­WROOM­1 & ESP32­S3­WROOM­1U Datasheet

Postby mlinaje » Thu Oct 21, 2021 1:02 pm

Rudi, do you know the difference between ESP32-S3-DevKitC-1-N8, ESP32-S3-DevKitC-1-N8R2 and ESP32-S3-DevKitC-1-N8R8?
Thanks in advance!

User avatar
ESP_krzychb
Posts: 394
Joined: Sat Oct 01, 2016 9:05 am
Contact:

Re: [Prerelease] ESP32­S3­WROOM­1 & ESP32­S3­WROOM­1U Datasheet

Postby ESP_krzychb » Fri Oct 22, 2021 12:08 pm

Hi mlinaje,
The difference is the size of flash and PSRAM memory, please see https://products.espressif.com/#/produc ... roducts%22:[%22Module%22],%22Series%22:[%22ESP32-S3%22]}

(Checkout out "ESP32-S3" and "module" in the selector. You may need to widen "MPN" column to see the module name with similar codes.)

User avatar
rudi ;-)
Posts: 1698
Joined: Fri Nov 13, 2015 3:25 pm

Re: [Prerelease] ESP32­S3­WROOM­1 & ESP32­S3­WROOM­1U Datasheet

Postby rudi ;-) » Sat Oct 23, 2021 2:01 pm

mlinaje wrote:
Thu Oct 21, 2021 1:02 pm
Rudi, do you know the difference between ESP32-S3-DevKitC-1-N8, ESP32-S3-DevKitC-1-N8R2 and ESP32-S3-DevKitC-1-N8R8?
Thanks in advance!
hi mlinaje

you got already replied, I also add my "mustard" :) ..
here are a few additions

in this case to have a certain flash type (H for High Temperature[105°C] or N for Normal [85°C]) and Digit for the size: N8 for 8MB Flash (normal)
in this case to have a certain extra RAM: Digit for the size 2MB, 8MB, 16MB. Note there are Quad SPI and Octal SPI version.
if you have limits in your pcb : note that Octal version needs more IO


ESP32-S3-DevKitC-1-N8 ( normal flash 8 MB )
ESP32-S3-DevKitC-1-N8R2 (normal flash 8 MB and extra psram 2 MB )
ESP32-S3-DevKitC-1-N8R8 (normal flash 8 MB and extra psram 8 MB )

In this case DevKitC is based on WROOM
Note: there is also a DevKitM - this is based on the MINI

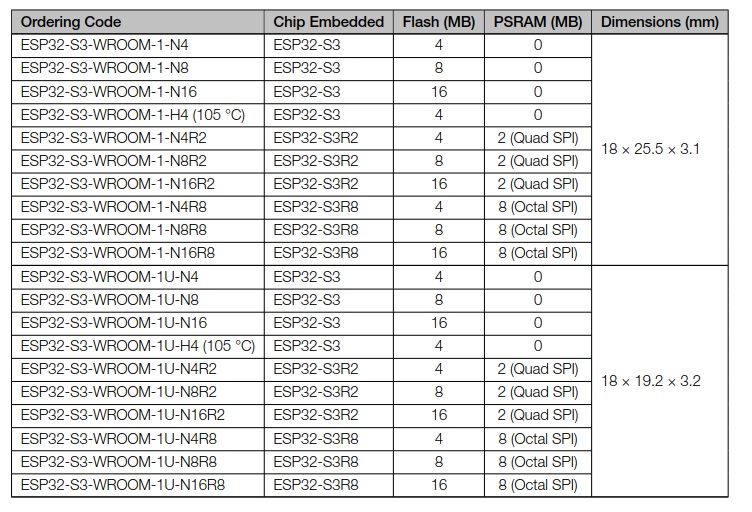

Overview:

hope this helps
best wishes
rudi ;-

ps: added the Espressif's_Chip-Packing_Information
Attachments
Espressif's_Chip-Packing_Information__EN.pdf
(1.85 MiB) Downloaded 972 times
-------------------------------------
love it, change it or leave it.
-------------------------------------
問候飛出去的朋友遍全球魯迪

User avatar
rudi ;-)
Posts: 1698
Joined: Fri Nov 13, 2015 3:25 pm

Re: [Prerelease] ESP32­S3­WROOM­1 & ESP32­S3­WROOM­1U Datasheet

Postby rudi ;-) » Fri Oct 29, 2021 12:28 pm

update 2021-Oct-29
=================

Hi Folks,

ESP32-S3-WROOM-1 & ESP32-S3-WROOM-1U Datasheet
This document introduces the specifications of ESP32-S3-WROOM-1 and ESP32-S3-WROOM-1U hardware, including overview, pin definitions, functional description, peripherals, and electrical characteristics, etc.
v0.6 2021.10.29


ESP32-S3-WROOM-1 & ESP32-S3-WROOM-1U 技术规格书
本文档为用户提供 ESP32-S3-WROOM-1 和 ESP32-S3-WROOM-1U 模组的技术规格信息。
v0.6 2021年10月29日


also for History here attached EN and CN Version

EN
esp32-s3-wroom-1_wroom-1u_datasheet_en.pdf
ESP32-S3-WROOM-1 & ESP32-S3-WROOM-1U Datasheet
v0.6 2021.10.29
(877 KiB) Downloaded 647 times

CN
esp32-s3-wroom-1_wroom-1u_datasheet_cn.pdf
ESP32-S3-WROOM-1 & ESP32-S3-WROOM-1U Datasheet
v0.6 2021.10.29
(1.14 MiB) Downloaded 743 times


Document Updates
Please always refer to the latest version on https://www.espressif.com/en/support/download/documents.

Documentation Change Notification
Espressif provides email notifications to keep customers updated on changes to technical documentation.
Please subscribe at www.espressif.com/en/subscribe


文档版本
请至乐鑫官网 https://www.espressif.com/zh-hans/suppo ... -documents 下载最新版本文档。


文档变更通知
用户可以通过乐鑫官网订阅页面 www.espressif.com/zh-hans/subscribe 订阅技术文档变更的电子邮件通知。


best wishes
rudi ;-)
-------------------------------------
love it, change it or leave it.
-------------------------------------
問候飛出去的朋友遍全球魯迪

dmaxben
Posts: 108
Joined: Thu Nov 16, 2017 6:04 pm

Re: [Prerelease] ESP32­S3­WROOM­1 & ESP32­S3­WROOM­1U Datasheet

Postby dmaxben » Wed Nov 03, 2021 5:38 pm

Is the ESP32-S3 "mini" module datasheet available yet?

User avatar
rudi ;-)
Posts: 1698
Joined: Fri Nov 13, 2015 3:25 pm

Re: [Prerelease] ESP32­S3­WROOM­1 & ESP32­S3­WROOM­1U Datasheet

Postby rudi ;-) » Wed Nov 03, 2021 8:39 pm

dmaxben wrote:
Wed Nov 03, 2021 5:38 pm
Is the ESP32-S3 "mini" module datasheet available yet?
s3 mini is still preliminary v0.2.1 but not yet public online there
products/modules | esp product selector | espressif documents
but heard, there will be an updated one on official website very soon dmaxben.
-------------------------------------
love it, change it or leave it.
-------------------------------------
問候飛出去的朋友遍全球魯迪

User avatar
rudi ;-)
Posts: 1698
Joined: Fri Nov 13, 2015 3:25 pm

Re: [Prerelease] ESP32­S3­WROOM­1 & ESP32­S3­WROOM­1U Datasheet

Postby rudi ;-) » Tue Nov 16, 2021 9:10 am

dmaxben wrote:
Wed Nov 03, 2021 5:38 pm
Is the ESP32-S3 "mini" module datasheet available yet?
ESP32-S3 MINI -> viewtopic.php?f=5&t=24418
-------------------------------------
love it, change it or leave it.
-------------------------------------
問候飛出去的朋友遍全球魯迪
